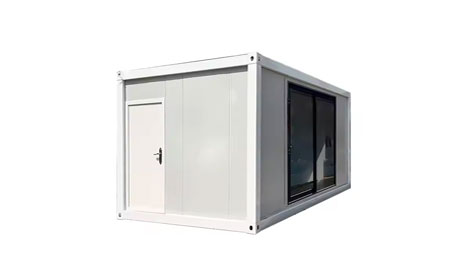

Mobile Portable Flat-pack Container House
Containerized mobile houses can be classified into three types based on their structural composition.Containerized mobile houses can be classified into three types based on their structural composition. The first type is container houses that have been modified from traditional containers. The first type is container ho The second type is brand-new welded box-type mobile houses.uses that have been modified from traditional containers. The third type is detachable box-type mobile houses.

Product Details

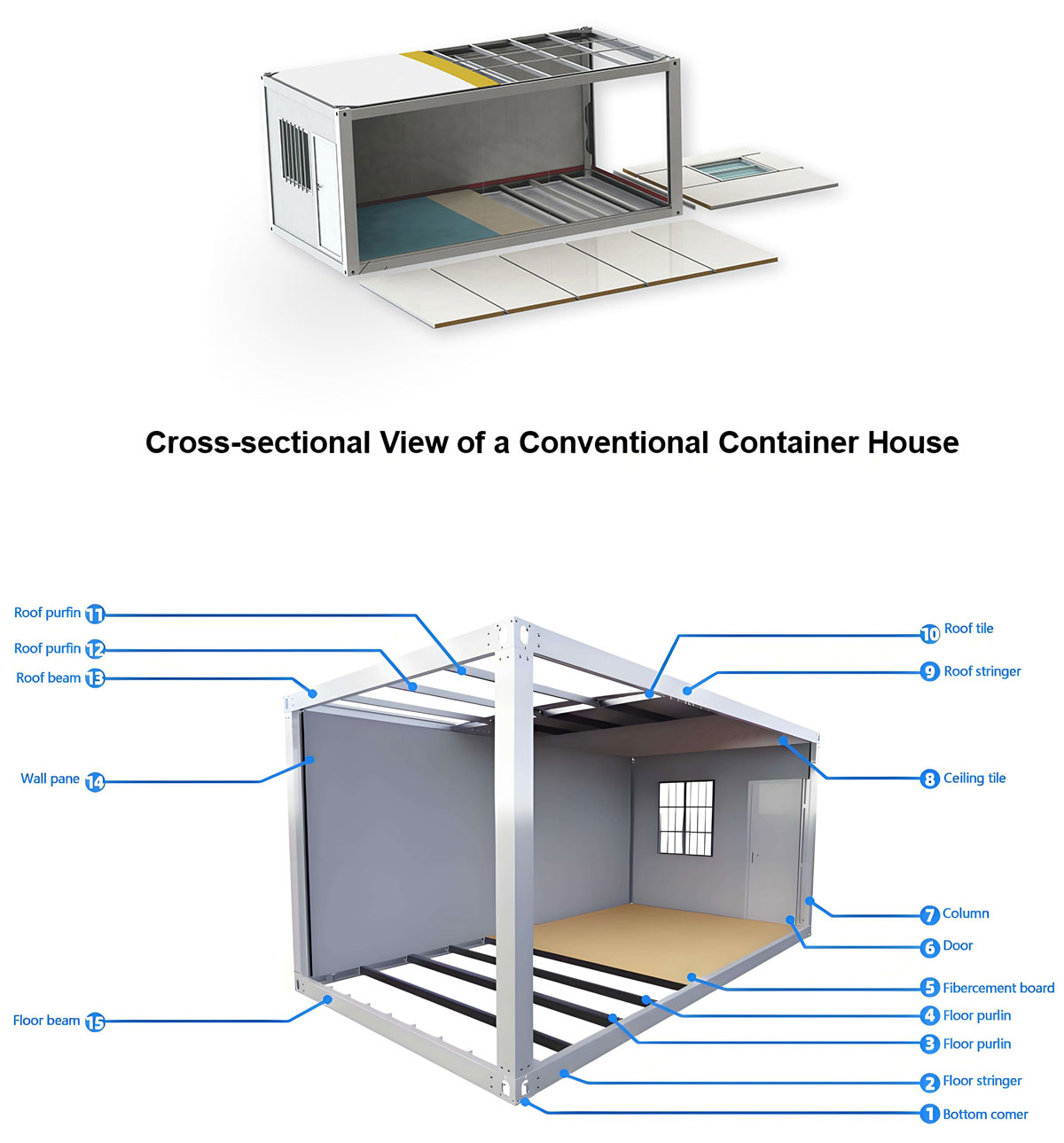

List of Materials for Quick Assembly Box House(Standard specifications:5950*3000*2800mm)
Serial numberSpecificationsUnitquantityLength (m)Remarks
1rock wool boardblock152.56Double-sided 0.25mm wall panel with 5cm rock wool core
2rock wool boardblock21.36Double-sided 0.25mm wall panel with 5cm rock wool core
3rock wool boardblock10.46Double-sided 0.25mm wall panel with 5cm rock wool core
4Long beambranch45.63Thickness 2.2mm
5Short beambranch42.68Thickness 2.0mm
6Corner pillarbranch42.48Thickness 2.2mm
7Corner Fittingpcs8standardThickness 3.5mm
8Pressing plate groovebranch25.78Connector for upper beam and wall panel, thickness 1.0mm
9Pressing plate groovebranch22.8Connector for upper beam and wall panel, thickness 1.0mm
10Bottom purlinbranch42.9980*80 galvanized square tube 1.2mm
11Bottom purlinbranch52.9940*80 galvanized square tube 1.2mm
12Top purlinbranch22.7950*50 galvanized square tube 1.2mm
13Top purlinbranch31.8840*80 galvanized square tube 1.2mm
14Top purlinbranch61.8840*60 galvanized square tube 1.2mm
15Door frame square tubebranch12.5640*20 galvanized square tube 1.2mm

2

4


3


Product features:

Energy conservation: The design of the prefabricated box houses is reasonable, adopting new energy sources, energy-saving lighting fixtures, centralized heating, individual metering, reclaimed water facilities, composite walls, shading, and roof utilization, among other energy-saving, water-saving, material-saving, and land-saving technical measures, to achieve integrated design.

Structure: The main structure of the housing unit is a steel frame structure. The enclosure structure uses metal sandwich panels with insulation and heat preservation functions or other types of enclosure panels. The enclosure structure is designed as a detachable and installable type. The boxes are connected to each other through bolts, making the structure simple and easy to install.

Installation and Reuse: The prefabricated modular houses have a service life of over 20 years and can be reused cyclically without any damage. They are low-cost and are particularly suitable for the secondary relocation of projects. The inner wall panels are made of metal surfaces, which have stronger anti-soiling capabilities compared to traditional building walls.

Layout: The modular design of the packing box houses ensures that within the size range of the boxes, the space is designed in accordance with the functional requirements. On the basis of the basic modules, they can be freely combined "as desired" to meet various requirements for space and shape.

Usage: Highly prefabricated modular spaces can be deployed quickly and economically, and can be used for various temporary, semi-permanent and permanent building forms.


Product advantages:

Safe and Comfortable: The materials used in the packing box houses meet the relevant national requirements. They can withstand an earthquake of 8 degrees, a wind force of 10 degrees, and are fireproof at grade A. The performance is excellent, the living space is large, and the interior of the boxes is bright, breathable, soundproof, and insulated, allowing the occupants to experience the warmth and comfort of "home".

Environmental protection and energy conservation: The installation process generates no construction waste. The construction period is shortened by 80% compared to traditional buildings, labor costs are reduced by 70%, concrete loss is decreased by 98%, water consumption during construction is reduced by 70%, and overall energy savings exceed 50%.

Installation is convenient and fast: The prefabricated modular housing is a movable and reusable building product. The box unit structure is made of standard components welded with special steel, and the boxes are connected to each other with bolts. The structure is simple and the installation is convenient and fast.

Integrated customization: Adopting modular design and factory production, with the box as the basic unit, it can be used independently or through different horizontal and vertical combinations to form spacious usage spaces. The vertical direction can also be stacked. It can be used for temporary dormitories and offices, tourism, car camps, exhibition halls, hotels, schools, shops, etc.

Product Application

Container-style prefabricated house
