45'HQ General Container - High Deck Container
The 45-foot high container (45HC) is a commonly used type of container in maritime transportation. Its internal dimensions are as follows:
Length: 13.56 meters (the exact value is 13,556 millimeters, including the threshold groove).
Width: 2.34 meters (standard container uniform inner width).
Height: 2.69 meters (slightly higher than the ordinary 40-foot high container, suitable for light cargo).
Load capacity and volume:
Maximum gross weight: Approximately 32,500 kilograms (varies slightly among different shipping companies; please confirm at the time of booking).
Effective volume: Approximately 86 cubic meters (calculation formula: Length × Width × Height). Data source: Based on the publicly available specifications from the International Organization for Standardization (ISO 668:2020) and major global shipping companies (such as Maersk and COSCO Shipping).

Product Details

45'HQ General Container - High Deck Container
Normal loading capacity: 78 cubic meters
External dimensions
LongWideHigh
45″-0″8″-0″9″-6″
13.716m2.438m2.896m
Internal dimensions
LongWideHigh
44'-5 7/10"7’-8 19/32"8'-10 17/64"
13.556m2.352m2.698m

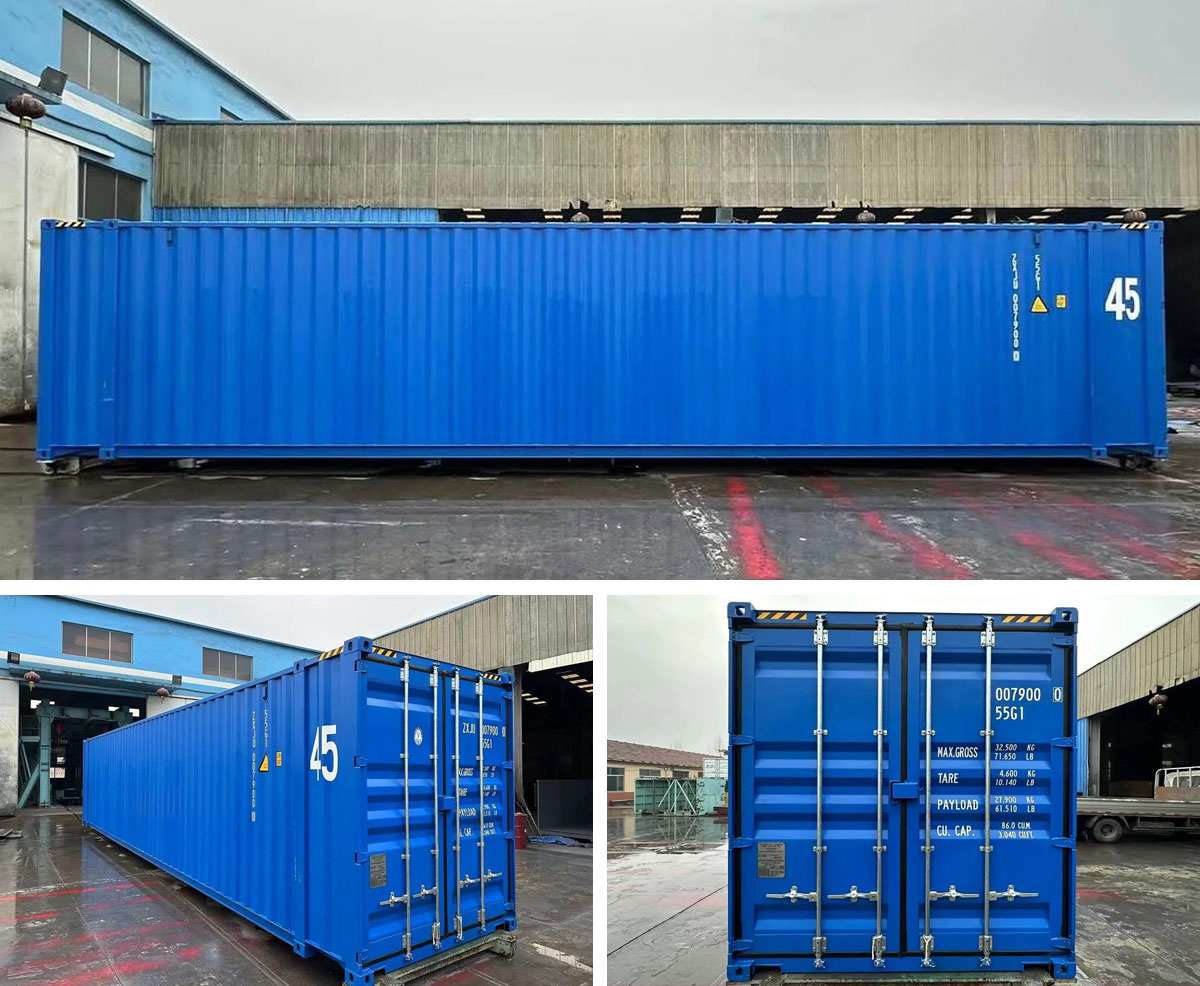

45尺高


Weight limitInner diameter of the cabinet door
Total weightEmpty cabinet weightNet weight of the goodsWideHigh
67,200 1b10,858 1b56, 342 1b7'-8 1/8"8'-5 3/4"
2.343m2.585m
30, 480 kg4, 870 kg25, 610 kgInternal volume (m³)Internal volume (ft³)
863.04
NoteThe above data is for reference only. The actual dimensions and weight should be based on the specifications provided on the cabinet.
